Turck Bi15U-CP40-AN6X2 1623510 Inductive Sensor

Rectangular, height 40 mm

Variable orientation of active face in 9 directions

Plastic, PBT‐GF30‐V0

High luminance corner LEDs

Optimum view on supply voltage and switching state from any position

Factor 1 for all metals

Protection class IP68

Resistant to magnetic fields

Extended temperature range

High switching frequency

DC 3-wire, 10…30 VDC

NO contact, NPN output

Terminal chamber

 Weight   207 g

Technical Data

Design   Rectangular

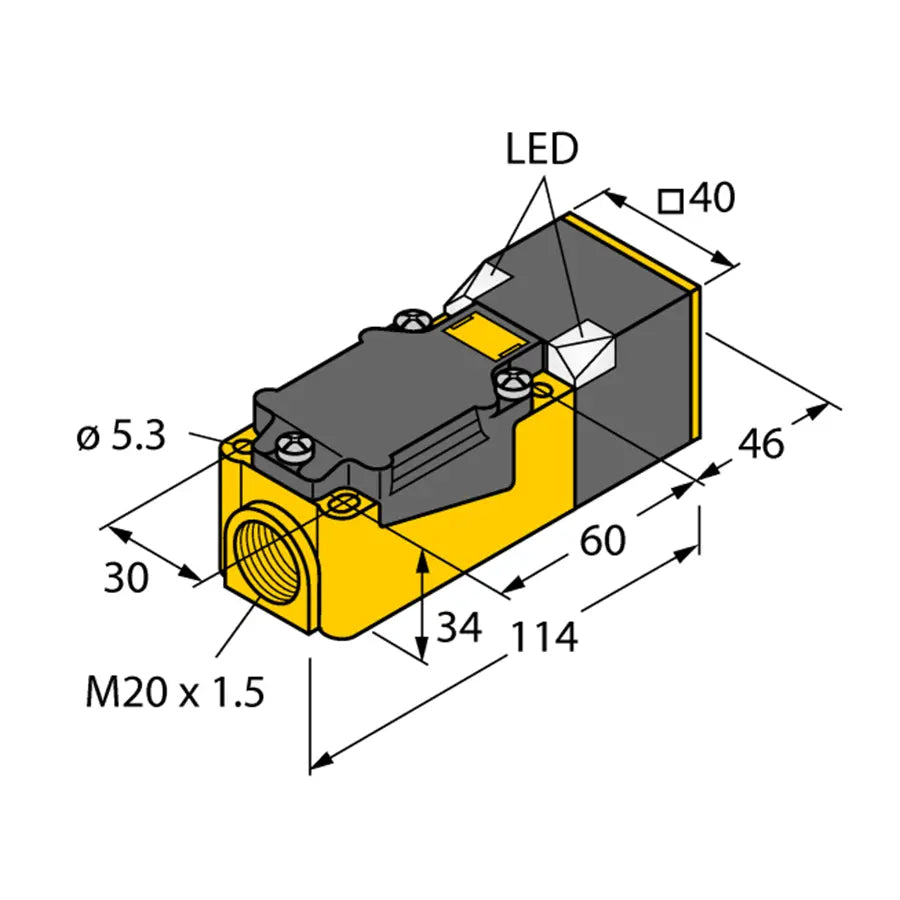

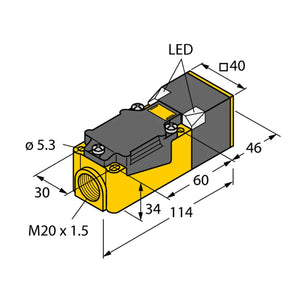

Construction size       Rectangular, CP40, 114 x 40 x 40 mm

Rated switching distance  15

Operating voltage      DC

Switching element function     NO contact

Output function   NPN

Electrical connection Terminal chamber

Housing material Plastic

Housing quality   PBT-GF30-V0

Housing surface  Black

Mounting      Flush

Special features  uprox®+,-Factor 1,-Resistant to magnetic fields
