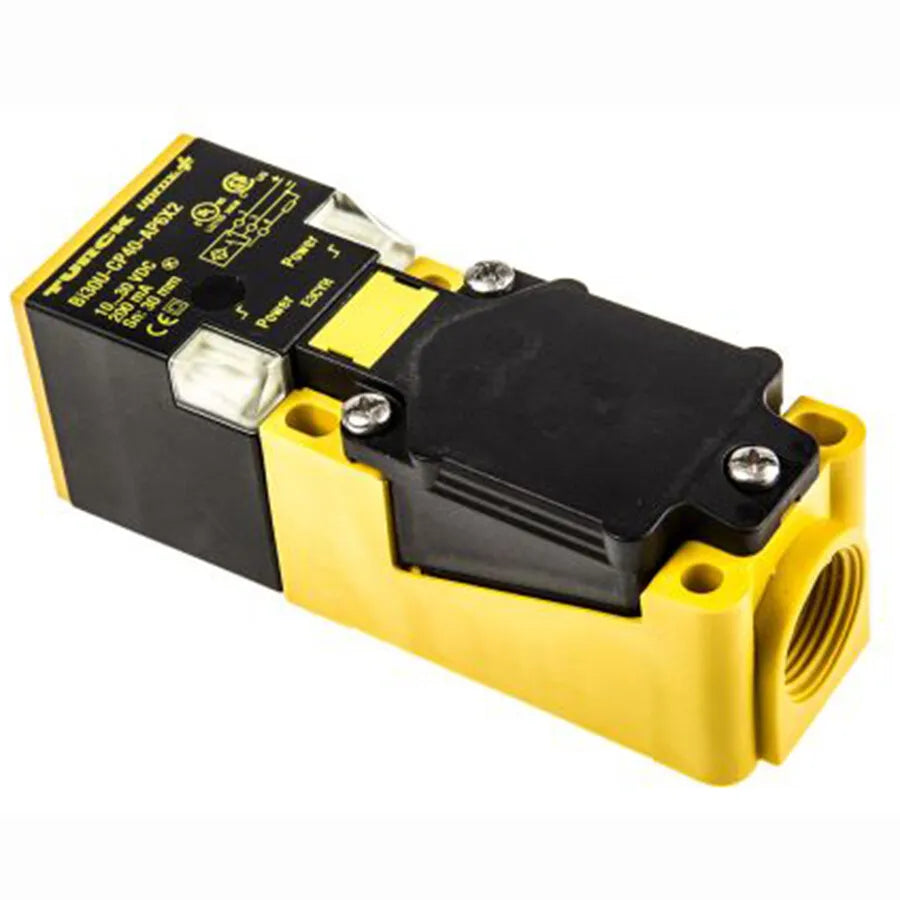

Turck BI30U-CP40-AP6X2 1625830 Inductive Sensor

Rectangular, height 40 mm

Variable orientation of active face in 9 directions

Plastic, PBT‐GF30‐V0

High luminance corner LEDs

Optimum view on supply voltage and switching state from any position

Factor 1 for all metals

Protection class IP68

Resistant to magnetic fields

Large coverage

High switching frequency

DC 3-wire, 10…30 VDC

NO contact, PNP output

Terminal chamber

 EAN      4047101080063

eCl@ss-Code (V5.1.4):    27270101 -/- Inductive proximity switch

Weight   208 g

Technical Data

Design   Rectangular

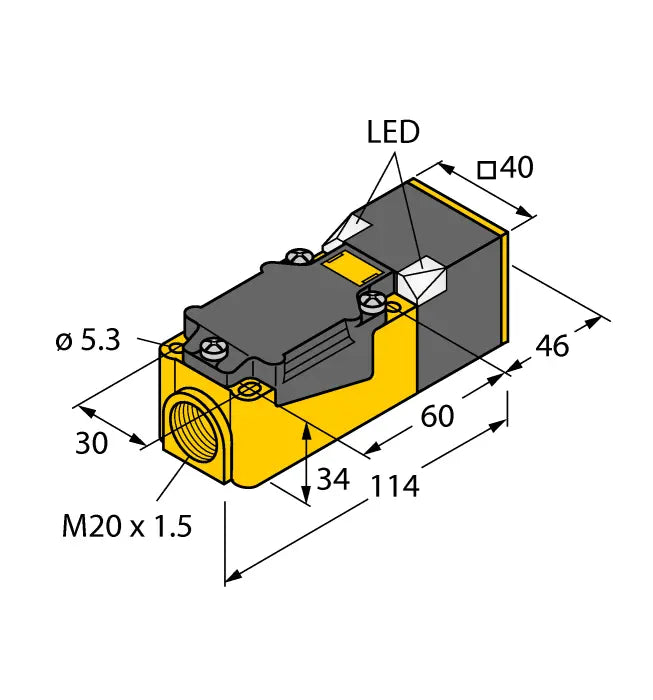

Construction size       Rectangular, CP40, 114 x 40 x 40 mm

Rated switching distance  30

Operating voltage      DC

Switching element function     NO contact

Output function   PNP

Electrical connection Terminal chamber

Housing material Plastic

Housing quality   PBT-GF30-V0

Housing surface  Black

Mounting      Flush

Special features  uprox®+,-Factor 1,-Resistant to magnetic fields
